Automatic CNC Stainless Steel Sink MFDC Rolling Seam Welding Machine Welders Equipment

Name: Automatic CNC Stainless Steel Sink MFDC Rolling Seam Welding Machine Welders Equipment
Brand: TRINTFAR
Price: 5000 USD

Brand Name : TRINTFAR

Model Number : FM-20

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 5000-8000 set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500 per year

Delivery Time : Within 90 days of the final payment

Packaging Details : wooden box

Name : Automatic longitudinal tank and barrel circular roller seam welding machine

After-sales Service Provided : Online support

Pulse width : 0.5~20ms

Laser Head Brand : Optional

Warranty : 1 Year

Focal spot diameter : 0.2mm~3mm

Contact Now

Automatic CNC Stainless Steel Sink MFDC Rolling Seam Welding Machine Welders Equipment


Feature
Structural features
With pneumatic and reliable pressurizing and convenient operation, the welder enjoys stepless regulation of welding speed.Equipped with welding controller, the welder has precise control and setting functions for the welding time and intervals and welding current energy.
1. 3 phase regulator controls the welding speed uniformly and without jerks.
2. Longitudinal and horizontal welding make it possible for various jobs and working conditions.
3. Robust structure capable to withstand heat and maintain welding performance. 4. The rotation conductance or silver axis tile provides excellent contact and reduces energy loss.
5. Widely used in Household appliances,auto, and other metal working industries.

Tank
Container

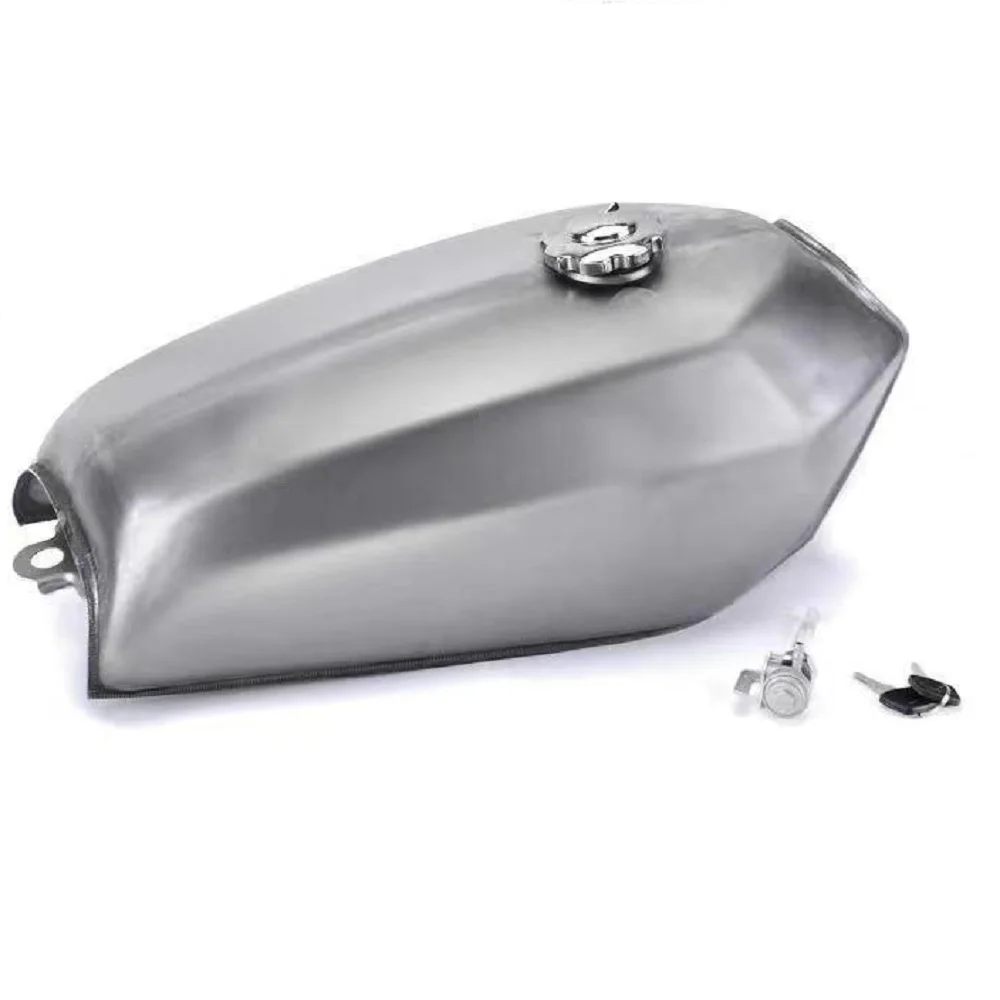

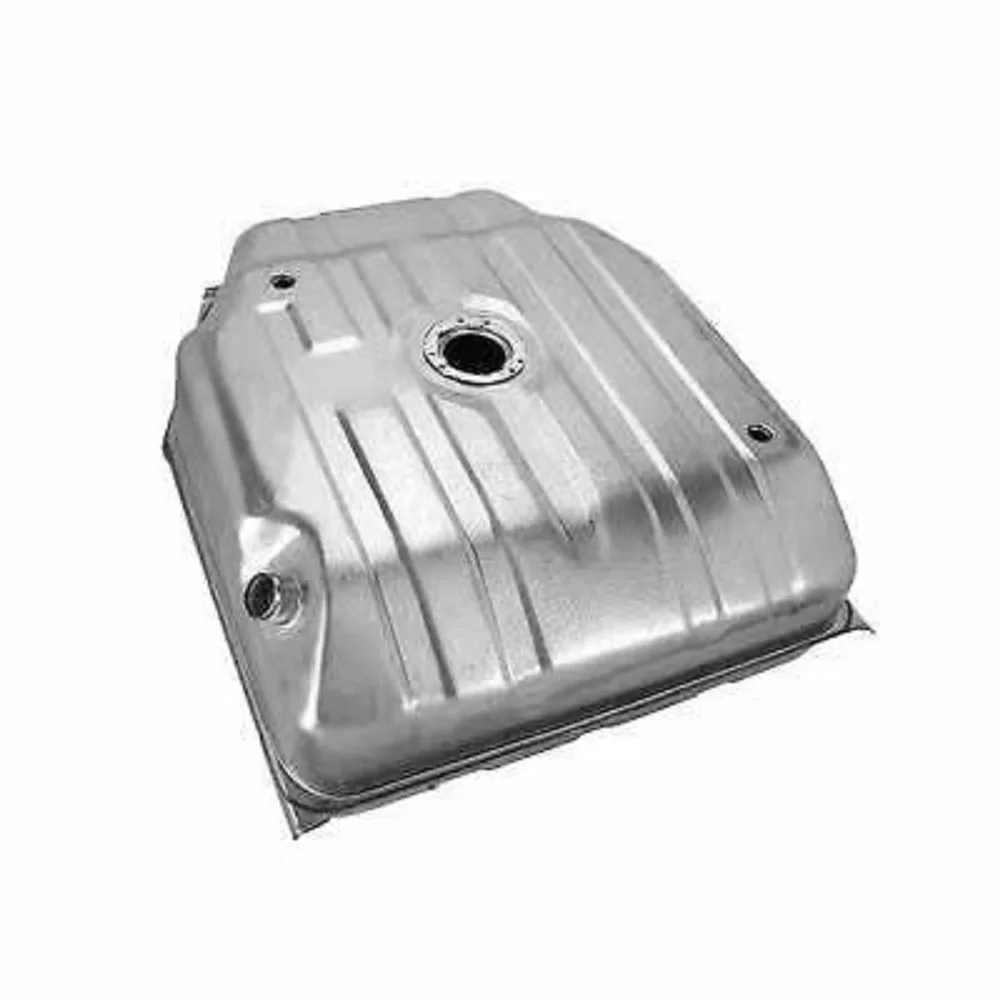

Fuel Tank
Specification
  	 			Item

Model


Maximum Short Current
KA


Rated Duty Cycle
%


Secondary Voilage
V


Rated Power
KVA


Electrode
Pressure
N


Electrode
Stroke
mm


Cooling Water
Lmim

 			FM-20
 			20
 			50
 			≈9.8
 			≤50
 			4700
 			80
 			24

 			FM-25
 			25
 			50
 			≈9.8
 			≤70
 			4700
 			80
 			24

 			FM-40
 			40
 			50
 			≈11.6
 			≤120
 			7300
 			80
 			30

 			FM-60
 			60
 			50
 			≈11.6
 			≤160
 			12000/18000
 			100
 			50

 			FM-80
 			80
 			50
 			≈11.6
 			≤240
 			12000/18000
 			100
 			50

 			FM-120
 			120
 			50
 			≈11.6
 			≤300
 			18000
 			100
 			60



Product Tags:

Automatic CNC Seam Welding Machine

MFDC Rolling Seam Welding Machine

Stainless Steel Sink Seam Welding Machine

Automatic CNC Stainless Steel Sink MFDC Rolling Seam Welding Machine Welders Equipment Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shanghai Trintfar Intelligent Equipment Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Item Model	Maximum Short Current KA	Rated Duty Cycle %	Secondary Voilage V	Rated Power KVA	Electrode Pressure N	Electrode Stroke mm	Cooling Water Lmim
FM-20	20	50	≈9.8	≤50	4700	80	24
FM-25	25	50	≈9.8	≤70	4700	80	24
FM-40	40	50	≈11.6	≤120	7300	80	30
FM-60	60	50	≈11.6	≤160	12000/18000	100	50
FM-80	80	50	≈11.6	≤240	12000/18000	100	50
FM-120	120	50	≈11.6	≤300	18000	100	60
